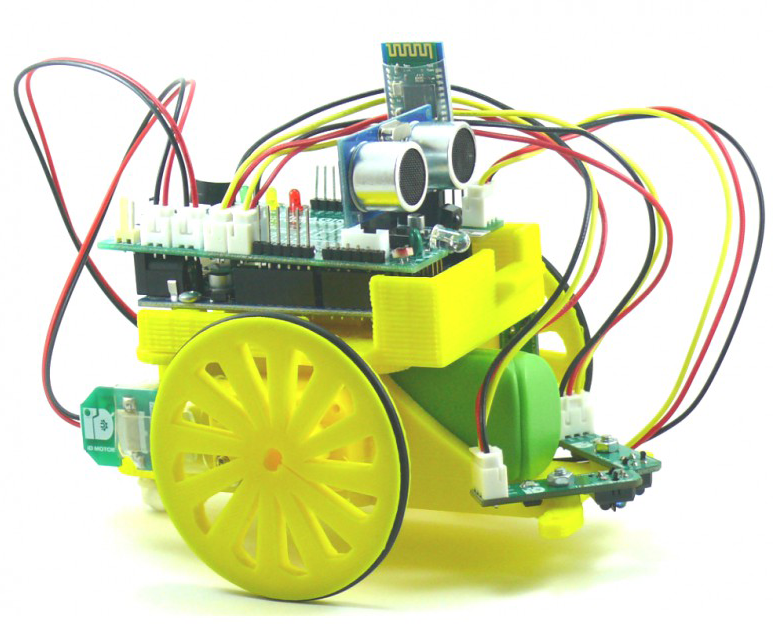

3dBot / Imagina-Arduino

Base board: Arduino Uno


Shop



3dBot / Imagina-Arduino



Sensor Connection
Motor-Left Pin 7,8 PWM=9
Motor-Right Pin 12,13 PWM=10
Led R Pin 5
Led Y Pin 6
Led G Pin 3
Buzzer Pin A0
Distance HC-SR04 Pin 2,4
IR Tracking Left/td> Pin 5
IR Tracking Right Pin 6
Bluetooth Pin 0,1
IR remote RX=Pin 3 / TX=Pin 11
IR wheel encoder Pin A1
Button Pin 2
Light sensor LDR Pin A2
Temperature sensor NTC Pin A3
